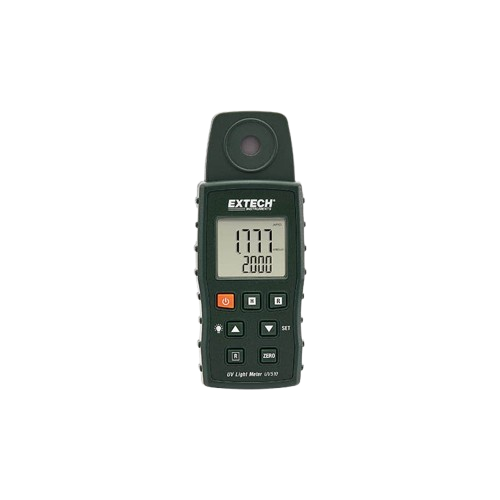

The UV510 UVA Light Meter is a compact, professional instrument designed to accurately measure UVA light radiation from both natural and artificial light sources. Featuring a cosine-corrected UV sensor, dual measurement ranges, and a backlit LCD, the UV510 delivers reliable irradiance readings for laboratory, industrial, environmental, and safety applications. Its lightweight handheld design makes it ideal for quick and convenient UV measurements in the field.

⭐ Key Features

• Measures UVA radiation (320–390 nm wavelength range)

• Cosine-corrected UV sensor for accurate irradiance measurement

• Measurement range up to 20.00 mW/cm²

• Backlit LCD display for use in dim or low-light environments

• Zero function for improved measurement accuracy

• Data Hold and Min/Max recording functions

• Auto power-off with disable option

• Tripod mount support (optional TR100 tripod)

• Compact, lightweight design with wrist strap and sensor cover

• Supplied with three AAA batteries

📊 Technical Specifications

• Brand: FLIR / Extech

• Model: UV510

• Product Type: UVA Light Meter

• Wavelength Range: 320 to 390 nm

• Measurement Ranges:

  • 0 to 1.999 mW/cm²

  • 2 to 20.00 mW/cm²

• Resolution: 0.001 mW/cm²

• Accuracy: ±4% FS

• Sensor Type: UVA sensor with cosine correction

• Display: Backlit digital LCD

• Functions: Zero, Data Hold, Min/Max

• Power Supply: 3 × AAA batteries

• Auto Power-Off: Yes (with disable function)

• Dimensions: 141 × 58 × 25 mm

• Weight: 160 g

• Accessories Included: Wrist strap, sensor cover, batteries

🏭 Applications

• Measurement of UVA radiation from sunlight and artificial sources

• Laboratory and research UV monitoring

• Industrial safety and environmental monitoring

• UV curing, inspection, and quality control

• Educational and training applications
