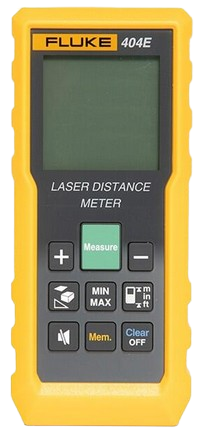

Fluke 404E Laser Distance Meter

The Fluke 404E Laser Distance Meter is a compact, accurate, and easy-to-use measuring tool designed for electricians, technicians, and construction professionals. With a measuring range of up to 40 meters, it enables quick distance measurement, area and volume calculations, and Pythagoras functions with simple one-hand operation.

Built for durability, the 404E features IP54 protection and 1-meter drop resistance, making it suitable for demanding job site conditions including dusty and light rain environments.

Key Features

• Fast distance measurement up to 40 m
• Area and volume calculation
• Pythagoras (2-point & 3-point) measurement
• Continuous measurement mode
• Auto Level & Auto Height function
• Add / Subtract calculation
• Electronic angle display
• Stores up to 30 measurement records
• Simple one-hand button operation
• Automatic power-off after 3 minutes

Technical Specifications

Manufacturer Information

• Manufacturer: Fluke
• Model: 404E Laser Distance Meter

Measurement Performance

• Measuring Range: 0.2 m to 40 m
• Accuracy (Favorable Conditions): ±(2.0 mm + 5 × 10⁻⁵ D)
• Accuracy (Unfavorable Conditions): ±(3.0 mm + 29 × 10⁻⁵ D)
• Angle Accuracy: ±(0.3° + 0.1° + 0.01° A), up to ±45°
• Measurement Units: m / ft / in / ft+in

Display & Data

• Display: 1.6-inch segment alphanumeric display
• Data Storage: 30 sets
• Auto-off: 3 minutes after inactivity

Laser Specification

• Laser Class: Class 2
• Laser Type: 630–670 nm
• Output Power: < 1 mW

Power & Operating Conditions

• Battery Type: 2 × AAA alkaline batteries
• Battery Life: Up to 5000 single measurements
• Operating Temperature: 0°C to 40°C
• Storage Temperature: –10°C to 60°C

Protection & Durability

• Ingress Protection: IP54
• Drop Test: 1 meter
• Size: 50 mm × 115 mm × 29 mm
• Weight: 100 g

Scope of Delivery

• Fluke 404E Laser Distance Meter
• User manual
• Vinyl carrying pouch
• 2 × AAA alkaline batteries
• Qualification certificate

Applications

• Electrical installation measurements
• Interior construction & renovation
• HVAC installation
• Site inspection and layout work
• Quick distance verification on-site
