Honeywell - Honeywell BW™ Max XT II Multi-Gas Detector
Honeywell

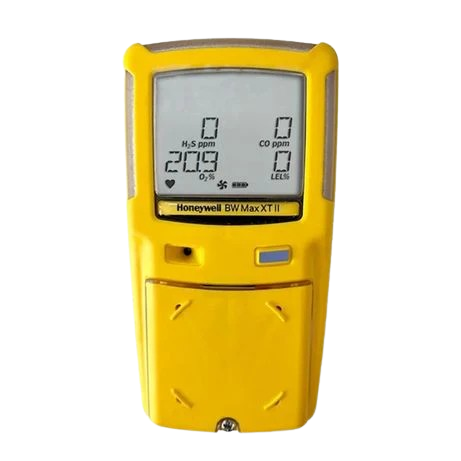

Honeywell BW™ Max XT II Multi-Gas Detector - Max XT II
| Product | Honeywell BW™ Max XT II Multi-Gas Detector |
|---|---|
| Brand | Honeywell |
| Product Price | 0 LKR |
| Datasheet | Download |
Description
General Description
The Honeywell BW™ Max XT II is a compact, rugged, and cost-effective portable multi-gas detector designed to monitor up to four atmospheric hazards simultaneously. Equipped with an integrated sampling pump and SmartSample technology, it provides reliable remote sampling for confined space applications. The detector continuously monitors Oxygen (O₂), Carbon Monoxide (CO), Hydrogen Sulfide (H₂S), and Combustible Gases (LEL), while offering real-time visual confirmation of compliance through IntelliFlash™ technology. It is fully compatible with the MicroDock II automated testing and calibration system.
Key Features
- Simultaneous monitoring of up to four gases (H₂S, CO, O₂, LEL)
- Integrated motorized sampling pump with SmartSample technology
- IntelliFlash™ continuous visual compliance indication
- One-button operation for easy use and reduced training requirements
- Continuous real-time gas concentration display
- Standard datalogging and event logging
- Automatic calibration capability with MicroDock II
- Water-resistant and impact-resistant design with built-in concussion-proof boot
- Multi-language support (English, French, German, Spanish, Portuguese)
- Compatible with Honeywell BW™ Connect for real-time monitoring
- Bright visual, audible, and vibrating alarms
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell Analytics |
| Model | BW™ Max XT II |
| Gas Detection | H₂S, CO, O₂, Combustible Gases (LEL) |
| Display | Continuous LCD with real-time gas readings |
| Sampling Method | Integrated Pump with SmartSample Technology |
| Pump Draw | Up to 75 ft (23 m) remote sampling |
| Alarms | Visual, Audible (95 dB), Vibrating |
| Alarm Types | Low, High, TWA, STEL, Over Limit (OL), Low Battery, Pump |
| Self-Test | Sensors, battery, pump, circuitry, audible & visual alarms |
| Operating Temperature | -20°C to +50°C |
| Humidity Range | 10–100% RH (non-condensing) |
| Battery Life | 13 hours at 0°C, 8 hours at -20°C |
| Recharge Time | Approximately 6 hours |
| Data Logging | Standard Datalogging and Event Logging |
| Ingress Protection | IP66/IP67 |
| Weight | 328 g |
| Dimensions | 131 × 70 × 52 mm |
| Warranty | 2 Years including sensors |
Sensor Specifications
| Gas | Measuring Range | Resolution |
|---|---|---|
| Hydrogen Sulfide (H₂S) | 0 – 200 ppm | 1 / 0.1 ppm |
| Carbon Monoxide (CO) | 0 – 1,000 ppm | 1 ppm |
| Oxygen (O₂) | 0 – 30% Vol. | 0.1% Vol. |
| Combustible Gases (LEL) | 0 – 100% LEL | 1% LEL |
Applications
- Confined Space Entry
- Oil & Gas Facilities
- Wastewater Treatment Plants
- Petrochemical Industries
- Chemical Processing Facilities
- Mining Operations
- Industrial Maintenance
- Emergency Response and Safety Monitoring
Certifications
- Class I, Division 1, Groups A, B, C, D
- IECEx: Ex ia IIC T4
- ATEX: II 1 G Ex ia IIC T4
- IP66/IP67 Environmental Protection Rating
This detector is particularly suitable for confined-space applications where remote gas sampling and simultaneous monitoring of multiple atmospheric hazards are required.
