Product Overview

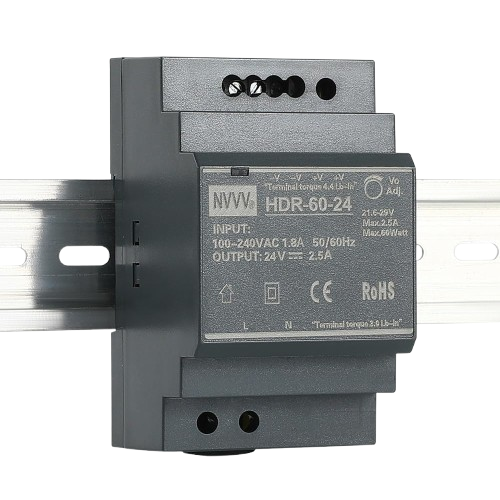

The Mean Well HDR-60-24 is a compact, highly reliable 60W DIN-rail power supply designed for industrial control panels, home automation systems, building management, and instrumentation applications.
With its ultra-slim 52.5 mm housing, universal AC input, and Class II double insulation, the HDR-60-24 provides stable 24V DC / 2.5A output and ensures efficient, safe, and maintenance-free operation.

Engineered for long life and energy efficiency, this power supply meets international safety standards and is ideal for space-constrained electrical cabinets.

Key Features

• Slim DIN-rail design (TS-35/7.5 or 15)
• Universal AC input: 85–264VAC
• Stable 24V DC output (2.5A)
• High efficiency up to 90%
• Low no-load power consumption <0.3W
• Class II, double-insulated plastic case
• Short-circuit, overload & overvoltage protection
• Cooling by natural air convection (no fans)
• LED indicator for power-on status
• Compliance with EN/UL safety standards
• Suitable for building automation & industrial control panels

Technical Specifications

• Brand: Mean Well
• Model: HDR-60-24
• Type: 60W DIN-rail Power Supply

Input

• Voltage Range: 85–264VAC / 120–370VDC
• Frequency: 47–63Hz
• Input Current: 1.5A @ 115VAC / 0.9A @ 230VAC
• Inrush Current: 30A @ 230VAC

Output

• Rated Output Voltage: 24V DC
• Rated Current: 2.5A
• Rated Power: 60W
• Voltage Adjust Range: 24–28V
• Ripple & Noise: <150mVp-p
• Efficiency: Up to 90%

Protections

• Overload protection (constant current mode)
• Overvoltage protection
• Short-circuit protection

Environmental

• Operating Temperature: –30°C to +70°C
• Storage Temperature: –40°C to +85°C
• Humidity: 20–90% RH, non-condensing

Mechanical

• Mounting: DIN rail TS-35
• Case Material: Plastic (flame retardant)
• Dimensions: 52.5 × 90 × 54.5 mm
• Weight: Approx. 150g

Safety & Standards

• UL508, TUV, CE certified
• EMC compliant to EN61000-6-2 / EN61000-6-3

Applications

• Industrial control panels
• PLCs, HMIs, controllers
• Home and building automation
• Security & access control systems
• HVAC & sensor power supply
• Smart metering systems
• Instrumentation and monitoring equipment

Why Buy from FieldInstruments.lk?

FieldInstruments.lk is Sri Lanka’s trusted source for industrial automation and power supplies, offering:

• 100% genuine Mean Well products
• Competitive pricing and fast nationwide delivery
• Technical support for sizing and selection
• Reliable after-sales assistance
• Wide range of DIN-rail PSUs and industrial components

The HDR-60-24 is a reliable, compact, and energy-efficient power supply ideal for any professional control system.
