RKI Instruments - RIKEN KEIKI GX-8000 Portable Multi-Gas Monitor
RKI Instruments
RIKEN KEIKI GX-8000 Portable Multi-Gas Monitor - GX-8000
| Product | RIKEN KEIKI GX-8000 Portable Multi-Gas Monitor |
|---|---|
| Brand | RKI Instruments |
| Product Price | 0 LKR |
| Datasheet | Download |
Description
Discontinued

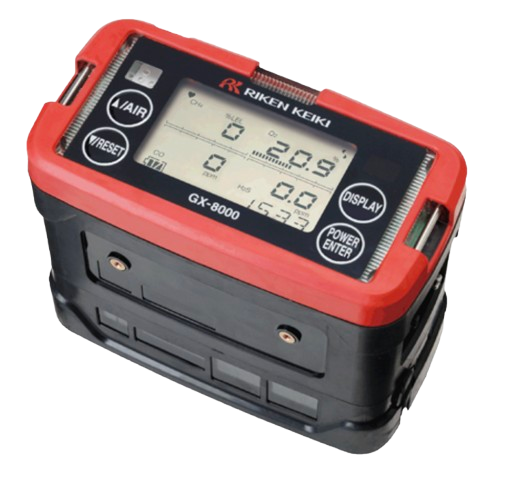

The RIKEN KEIKI GX-8000 is a rugged, portable multi-gas monitor designed for personal protection and confined space gas detection. It simultaneously measures combustible gases, oxygen (O₂), hydrogen sulfide (H₂S), and carbon monoxide (CO), making it ideal for industrial safety, oil & gas, petrochemical plants, marine, and emergency response applications.
Designed with years of RIKEN KEIKI gas detection expertise, the GX-8000 features a waterproof IP67 enclosure, powerful internal sampling pump, data logging, infrared communication, and loud audible and visual alarms for reliable operation in harsh environments.
Key Features
- Simultaneous detection of up to four gases
- Large LCD display with automatic backlight
- Digital bar graph (25 segments)
- Powerful built-in sampling pump
- Audible alarm exceeding 95 dB(A)
- Bright LED visual alarm indicators
- Vibration alarm
- Waterproof IP67 enclosure
- Rechargeable Lithium-ion battery
- Optional AA alkaline battery pack
- Internal data logger
- Password protection
- IrDA communication
- Pump stop and pump test functions
- Calibration failure indication
- Battery status indication
- Flow failure detection
- Sensor failure detection
- Intrinsically safe design
Detectable Gases
| Gas | Detection Principle | Measuring Range |
|---|---|---|
| Combustible Gas (%Vol) | Thermal Conductivity | 0–100 %Vol |
| Combustible Gas (%LEL) | Ceramic Catalytic | 0–100 %LEL |
| Oxygen (O₂) | Galvanic Cell | 0–40.0 %Vol |
| Hydrogen Sulfide (H₂S) | Electrochemical | 0–100 ppm |
| Carbon Monoxide (CO) | Electrochemical | 0–500 ppm |
Alarm Levels
Oxygen
- Low Alarm: 19.5%
- High Alarm: 23.5%
- Over Range: 40%
Hydrogen Sulfide (H₂S)
- 1st Alarm: 5 ppm
- 2nd Alarm: 30 ppm
- TWA: 10 ppm
- STEL: 15 ppm
- Over Range: 100 ppm
Carbon Monoxide (CO)
- 1st Alarm: 25 ppm
- 2nd Alarm: 50 ppm
- TWA: 25 ppm
- STEL: 200 ppm
- Over Range: 500 ppm
Combustible Gas (%LEL)
- 1st Alarm: 10%LEL
- 2nd Alarm: 50%LEL
- Over Range: 100%LEL
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | LCD with Auto Backlight |
| Alarm | Audible, LED & Visual |
| Alarm Sound | >95 dB(A) at 30 cm |
| Sampling Method | Internal Pump |
| Pump Flow | Minimum 0.75 L/min |
| Battery | Rechargeable Lithium-ion |
| Optional Battery | 3 × AA Alkaline |
| Battery Charging Time | Approx. 3 Hours |
| Continuous Operation | >12 Hours (Li-ion) |
| Operating Temperature | -20°C to +50°C |
| Humidity | Below 95% RH (Non-condensing) |
| Dimensions | 154 × 81 × 127 mm |
| Weight | Approx. 1.1 kg |
| Protection Rating | IP67 |
| Explosion Protection | II 1G Ex ia IIC T4 Ga |
Approvals
- IECEx
- ATEX
- MED
- CE Marking
- TIS
- HK Approval
- IEC60079-29-1 Compliant
Standard Accessories
- AC Battery Charger
- Gas Sampling Probe
- 1 m Spiral Sampling Hose
- Rechargeable Lithium-ion Battery
- Neck/Shoulder Strap
Optional Accessories
- Dry Battery Unit
- 8 m Floating Sampling Hose
- 30 m Sampling Hose with Plummet
- Telescopic Sampling Rod
- Filter Tube
- Junction Tube
- Gas Dilution Probe
- Waist Strap
- Leather Carrying Case
- Storage Box
- Calibration Gas Set
- Flow Control Valve
- Data Logging Software
Typical Applications
- Confined Space Entry
- Oil & Gas Industry
- Petrochemical Plants
- Chemical Processing
- Marine & Offshore
- Fire & Rescue Services
- Utilities
- Environmental Monitoring
- Industrial Maintenance
- Hazardous Area Gas Monitoring
