RKI Instruments - RKI Instruments GX-9000 Portable Multi Gas Detector
RKI Instruments

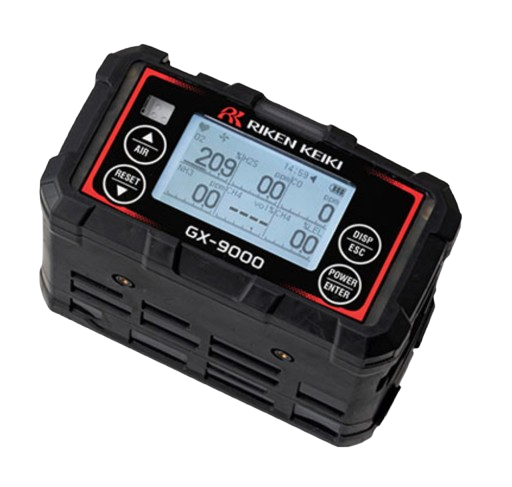

RKI Instruments GX-9000 Portable Multi Gas Detector - GX-9000
| Product | RKI Instruments GX-9000 Portable Multi Gas Detector |
|---|---|
| Brand | RKI Instruments |
| Product Price | 0 LKR |
| Datasheet | Download |
Description
The RIKEN KEIKI GX-9000 Series is an advanced portable multi-gas detector engineered for confined space entry, industrial safety, marine operations, oil & gas facilities, petrochemical plants, underground utilities, and emergency response. The GX-9000 can simultaneously detect up to six different gases, including combustible gases, oxygen, toxic gases, carbon dioxide, ammonia, VOCs, and other specialty gases using advanced sensor technologies.
The detector features next-generation R Sensors and F Sensors, providing improved accuracy, long-term stability, and a sensor warranty of up to 3 years. With approximately 1,000 sensor combinations, users can configure the instrument to suit a wide variety of industrial applications.
Key Features
- Simultaneous detection of up to 6 gases
- Approximately 1,000 configurable sensor combinations
- Advanced R Sensor and F Sensor technology
- Up to 3-year sensor warranty
- Available in GX-9000 and GX-9000H models
- Bluetooth® connectivity for smartphone data management (optional)
- Free RK Link mobile application
- USB Type-C charging and PC communication
- Built-in high-performance sampling pump
- Sampling distance up to 45 metres
- Combustible gas conversion function (supports up to 27 combustible gases)
- Large LCD full-dot display
- Multilingual user interface (16 languages)
- Snap Log function for instant data recording
- Adjustable alarm setpoints
- Confirmation beep function
- Calibration reminder
- Rugged IP66/IP68 waterproof construction
- Passed 1.5 m drop test
- Intrinsically Safe Explosion-Proof Design
- CE, ATEX, IECEx and MED certified
Detectable Gases
The GX-9000 Series supports numerous gas combinations, including:
Combustible Gases
- Methane (CH₄)
- Isobutane (i-C₄H₁₀)
- Hydrogen (H₂)
- Acetylene (C₂H₂)
Standard Safety Gases
- Oxygen (O₂)
- Carbon Monoxide (CO)
- Hydrogen Sulfide (H₂S)
Additional Toxic Gases
- Carbon Dioxide (CO₂)
- Ammonia (NH₃)
- Chlorine (Cl₂)
- Ozone (O₃)
- Hydrogen Chloride (HCl)
- Sulfur Dioxide (SO₂)
- Volatile Organic Compounds (VOC)
The GX-9000H version also supports high-concentration H₂S measurement up to 1,000 ppm.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GX-9000 / GX-9000H |
| Detection Method | Pump Suction |
| Maximum Gas Channels | 6 |
| Display | LCD Full Dot Display |
| Sampling Flow | Minimum 0.75 L/min |
| Communication | USB Type-C, Bluetooth 4.2 (Optional) |
| Battery Options | Rechargeable Lithium-ion or 6 × AA Alkaline |
| Battery Life (GX-9000) | Up to 25 hrs (Li-ion), 12 hrs (AA) |
| Battery Life (GX-9000H) | Up to 35 hrs (Li-ion), 15 hrs (AA) |
| Operating Temperature | -20°C to +50°C (Continuous), -40°C to +60°C (Temporary) |
| Operating Humidity | 10–90% RH |
| Protection Rating | IP66 / IP68 |
| Drop Resistance | 1.5 metres |
| Dimensions | 158 × 85 × 132 mm |
| Weight | Approx. 1.1 kg (GX-9000), 1.2 kg (GX-9000H) |
| Explosion Protection | Intrinsically Safe (IECEx / ATEX / Japan Ex) |
Smart Features
- Bluetooth smartphone connectivity with RK Link App
- Automatic email notification when alarms occur
- Data logging and event history
- USB Type-C charging and PC interface
- Combustible gas conversion for up to 27 different gases
- User-configurable alarm thresholds
- Maintenance reminder and calibration notification
- Snap Log button for instant recording of time, user, location, and gas readings
Optional Accessories
- Sampling tubes (8 m, 30 m, and 45 m)
- Floating sampling hose
- Weighted sampling hose
- Gas sampling rod
- Water trap
- Diluter
- Leather carrying case
- Aluminum storage case
- Lithium-ion battery pack
- Dry battery pack
- Calibration gas kit
- Demand flow valve
- Data logger software
- USB communication cable
- Protective display film
Typical Applications
- Confined Space Entry
- Oil & Gas Industry
- Petrochemical Plants
- Chemical Manufacturing
- Marine & Offshore
- Shipyards
- Wastewater Treatment
- Fire & Rescue Services
- Utility Maintenance
- Underground Cable & Tunnel Inspection
- Industrial Plant Maintenance
- Environmental Monitoring
