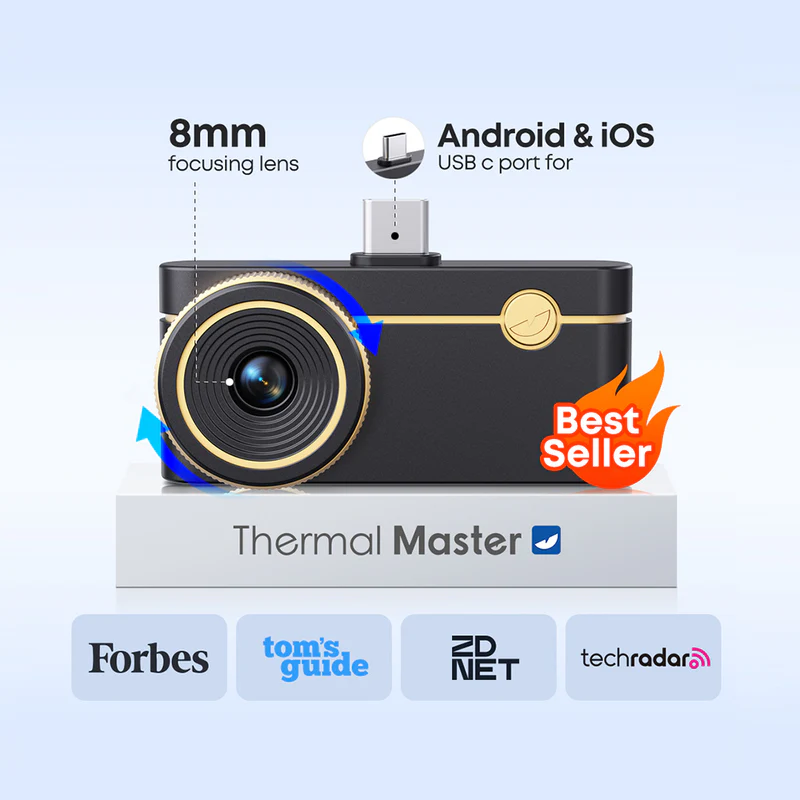

Thermal Master P3 PCB Thermal Camera - P3
| Product | Thermal Master P3 PCB Thermal Camera |
|---|---|
| Brand | Thermal Master |
| Product Price | 0 LKR |
| Datasheet | Download |
Description
Product Overview
The Thermal Master P3 PCB Thermal Camera is a professional smartphone thermal imaging camera specially designed for PCB inspection, electronics diagnostics, and industrial thermal analysis. It features a high-sensitivity infrared sensor and macro focus lens, allowing precise detection of overheating components, PCB leakage, and hidden circuit faults.
With its high 512 × 384 thermal resolution and wide temperature measurement range from –20°C to +600°C, the P3 delivers clear, accurate, and reliable thermal images. Its compact plug-in design connects directly to Android, iPhone, iPad, and PC devices, making it a powerful and portable tool for engineers, technicians, and maintenance professionals.
Key Features
• High thermal resolution 512 × 384
• Detects PCB leakage as small as 1 mA
• Macro and manual focus lens for close inspection
• Wide temperature range –20°C to +600°C
• High accuracy ±2°C or ±2% of reading
• 15× digital zoom
• Real-time imaging with 25Hz refresh rate
• Multiple temperature measurement modes
• 12 selectable color palettes
• Photo capture and video recording
• Compact, lightweight, and portable design
• Compatible with Android, iPhone, iPad, and PC
Technical Specifications
Manufacturer: Thermal Master
Model: P3
Type: PCB Thermal Imaging Camera
Thermal Imaging
• IR Resolution: 512 × 384
• Detector type: VOx uncooled infrared detector
• NETD (Sensitivity): <35 mK
• Spectral range: 8–14 μm
• Frame rate: 25 Hz
• Digital zoom: 15×
Temperature Measurement
• Measuring range: –20°C to +600°C
• Accuracy: ±2°C or ±2% of reading
• Measurement modes: Point, Line, Area
• Temperature correction: Emissivity and ambient adjustment
Optical Specifications
• Focus mode: Macro and manual focus
• Focal length: 4.3 mm
• Field of view: 40° × 30.2°
General Specifications
• Compatibility: Android, iOS, iPad, and PC
• Image modes: Thermal, Visible, Picture-in-Picture
• Color palettes: 12 palettes
• Power supply: Powered by smartphone
• Dimensions: 59 × 27 × 17.2 mm
• Weight: 26.3 g
• Housing: Aerospace alloy body
• Operating temperature: –20°C to +55°C
• Storage temperature: –20°C to +60°C
Applications
• PCB inspection and repair
• Electronics troubleshooting
• Industrial maintenance
• Electrical panel inspection
• HVAC diagnostics
• Automotive electronics inspection
• Research and development
• Quality control
