Product Overview

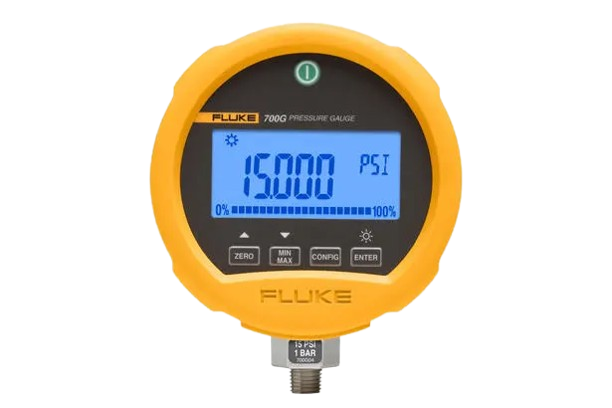

The Fluke 700G07 Precision Pressure Test Gauge is a high-accuracy digital pressure gauge designed for pressure calibration, testing, and industrial measurement applications. With a measurement range of –12 to +500 psi (–0.83 to +34 bar), it is ideal for hydraulic systems, pneumatic equipment, process control, and calibration laboratories.

The gauge offers excellent accuracy up to ±0.05% of full scale and features a clear digital display with bar graph indication. Its rugged industrial construction and compatibility with Fluke pressure test pump kits make it a reliable solution for both field and laboratory pressure calibration tasks.

Key Features

• Pressure measurement range –12 to +500 psi (–0.83 to +34 bar)
• High accuracy ±0.05% of full scale
• Suitable for pressure and vacuum measurement
• High-resolution digital display with bar graph
• Rugged industrial design with protective holster
• Data logging capability (with 700G/TRACK software)
• Compatible with pneumatic and hydraulic pressure test pumps
• Long battery life up to 2000 hours
• Compact and portable design
• Calibration certificate included

Technical Specifications

Manufacturer: Fluke
Model: 700G07
Type: Precision Pressure Test Gauge

Pressure Measurement

• Measuring range:
–12 to +500 psi
–0.83 to +34 bar

• Accuracy:
Positive pressure: ±0.05% of full scale
Vacuum: ±0.1% of full scale

• Resolution:
0.01 psi
0.001 bar

• Burst pressure:
2000 psi
138 bar

General Specifications

• Display: Digital display with bar graph and backlight
• Pressure connection: ¼ inch NPT male
• Battery type: 3 × AA alkaline batteries
• Battery life:
1500 hours continuous use
2000 hours typical use

• Dimensions: 127 × 114 × 37 mm
• Weight: 0.56 kg
• Housing: Rugged industrial housing with protective holster

Applications

• Pressure calibration
• Hydraulic system testing
• Pneumatic system testing
• Industrial maintenance
• Process control calibration
• Calibration laboratories
• Leak testing
• Instrument calibration
