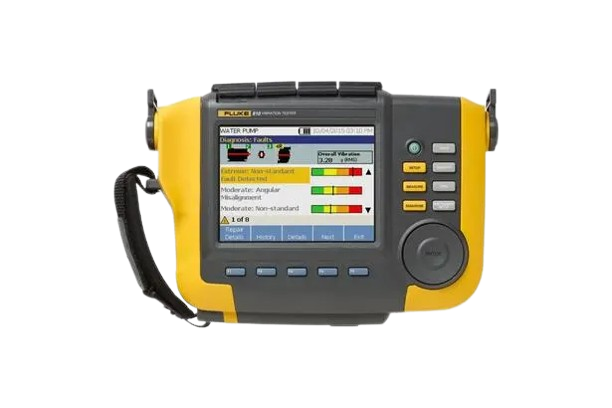

Fluke - Fluke 810 Vibration Tester
Fluke 810 Vibration Tester - 810
| Product | Fluke 810 Vibration Tester |
|---|---|
| Brand | Fluke |
| Product Price | 0 LKR |
| Datasheet | Download |
Description
Product Overview
The Fluke 810 Vibration Tester is a professional-grade diagnostic instrument designed for maintenance teams who need to identify mechanical faults quickly and reliably. It combines advanced vibration analysis, spectral diagnostics and automatic fault detection (e.g., misalignment, unbalance, bearing defects, looseness) into a handheld tool ideal for manufacturing plants, utilities, and reliability engineering environments.
Key Features
- On-board diagnostics identify common mechanical faults such as misalignment, unbalance, looseness, and bearing defects
- Overall vibration level measurement with severity indicators to prioritize repairs
- Detailed spectral diagrams and fault reports for professional analysis
- Tri-axial accelerometer input for fast multi-axis measurement
- Laser tachometer included for accurate rotational speed measurement
- USB connectivity, SD card memory expansion and PC software for trending and reporting
- Rugged handheld design with large back-lit colour display, long battery life, and field-ready portability
Technical Specifications
Brand: Fluke
Model: 810
Type: Vibration Tester
Diagnostic Specifications
- Machine rotational speed range: 200 to 12,000 rpm
- Fault types diagnosed: unbalance, looseness, misalignment, bearing failures
Electrical / Sensor
- A/D Converter: 4 channel, 24-bit
- Usable bandwidth: 2 Hz to 20 kHz
- Sampling rate: 2.5 kHz to 50 kHz
- Dynamic range: 128 dB
- Signal-to-noise ratio: 100 dB
- FFT resolution: 800 lines
General & Mechanical
- Display: 5.7″ colour TFT LCD (320 × 240)
- Dimensions: Approx. 18.6 × 7.0 × 26.7 cm (7.3″ × 2.8″ × 10.5″)
- Weight: Approx. 1.9 kg (4.2 lb, with battery)
- Battery: Rechargeable lithium-ion pack (≈14.8 V, 2.55 Ah)
- Battery charging time: ~3 hours
- Typical discharge time: ~8 hours
- Memory: Internal (~2 GB) plus SD micro-memory card slot
- Operating temperature: 0°C to +50°C (32°F to 122°F)
- Storage temperature: –20°C to +60°C (–4°F to 140°F)
- Operating humidity: 10% to 95% RH (non-condensing)
Included Accessories
- Tri-axial accelerometer with magnet mount and mounting pad kit
- Quick-disconnect cable
- Laser tachometer
- Smart battery pack and AC charger
- USB cable, carry case, shoulder strap & hand strap
- Viewer PC software
Applications
- Troubleshooting motors, pumps, gearboxes, fans, belt drives & compressors
- Commissioning new machines and verifying installation conditions
- Predictive maintenance and reliability engineering
- Root-cause analysis for recurring mechanical issues
- Vibration trending, reporting and asset-lifecycle management
Why Buy from FieldInstruments.lk?
- 100% genuine Fluke test & measurement gear
- Competitive pricing and fast delivery across Sri Lanka
- Local technical support for setup, diagnostics & software integration
- Trusted supplier for industrial instrumentation and reliability tools
The Fluke 810 Vibration Tester offers a complete solution for professional vibration analysis and mechanical troubleshooting—ideal for users requiring rapid diagnostics and actionable data.
