Fluke - Fluke 835 Laser belt alignment tool
Fluke 835 Laser belt alignment tool - 835
| Product | Fluke 835 Laser belt alignment tool |
|---|---|
| Brand | Fluke |
| Product Price | 0 LKR |
| Datasheet | Download |
Description
Product Overview

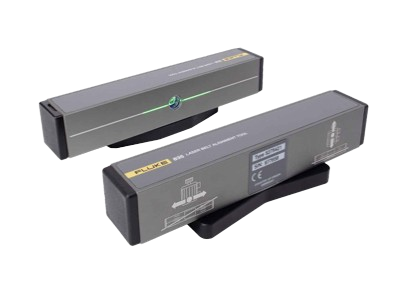

The Fluke 835 Laser Belt Alignment Tool is a fast, accurate, and easy-to-use solution for aligning belt-driven pulley systems, helping reduce belt wear, power losses, vibration, and premature bearing failure. Designed for single-operator use, it replaces outdated straight-edge and string methods with precise laser alignment technology.
Using the proven OPTALIGN® reflected beam principle, the Fluke 835 simultaneously displays vertical angle, horizontal angle, and offset, allowing real-time corrections without cross-checking. With strong magnetic mounting, a compact rugged design, and a highly visible green laser, it is ideal for maintenance teams aiming to improve machine reliability and reduce unplanned downtime.
Key Features
• Purpose-Built for Belt & Pulley Alignment – Quick, simple, and accurate alignment
• Single-Operator Operation – No training required
• OPTALIGN® Reflected Beam Technology – Maximum angular resolution and accuracy
• Simultaneous Offset & Angular Readings – Vertical and horizontal alignment at once
• Live Adjustment Feedback – See corrections instantly during alignment
• Strong Magnetic Mounting – Attaches securely to virtually any pulley face
• Green Laser (505–535 nm) – Highly visible even in bright industrial environments
• Compact & Rugged Design – No small parts to lose, easy to carry
• Time-Saving Method – No cross-checking required
Technical Specifications
Manufacturer: Fluke
Model: 835
Type: Laser Belt & Pulley Alignment Tool
Laser System
• Laser wavelength: 505 – 535 nm (green)
• Output power: < 1.0 mW
• Laser class: Class 2
• Measuring distance: Up to 10 m between units
• Laser line length: 7 m at 5 m distance
• Alignment accuracy: ±0.2°
Power & Operation
• Battery type: 4 × AAA alkaline batteries
• Operating time: Up to 6 hours continuous use
• Controls: Laser ON / OFF rocker switch
Construction & Design
• Housing: Gray anodized aluminum
• Mounting method: Strong integrated magnets
• Dimensions (each unit): 37 × 40 × 170 mm
• Weight:
– Laser unit: 0.30 kg
– Reflector unit: 0.27 kg
• Designed for industrial maintenance environments
Operating Conditions
• Operating temperature: –5 °C to +40 °C
• Storage temperature: –10 °C to +70 °C
How It Works (4 Simple Steps)
-
Mount the laser unit on the stationary pulley and the reflector on the movable pulley
-
Observe laser lines to identify vertical angle, horizontal angle, and offset
-
Adjust shims or machine position while viewing live laser feedback
-
Alignment is achieved when transmitted and reflected laser lines align with reference lines
Applications
• Belt-driven motor and pump systems
• Fans, blowers, and compressors
• Conveyor drives
• HVAC and chiller systems
• Industrial and commercial rotating machinery
• Preventive and predictive maintenance programs
Why Buy from FieldInstruments.lk?
• 100% genuine Fluke maintenance tools
• Competitive pricing with fast island-wide delivery
• Trusted supplier for professional reliability solutions
• Expert local technical support and after-sales service
Contacts and Delivery
Fieldinstruments.lk
50/3, Angampitiya Rd, Ethul Kotte, Sri Lanka. 10100.
Phone: +94718555888 Email: info@fieldinstruments.lk
