Pepperl+Fuchs - Pepperl+Fuchs UC2000-30GM-IUR2-V15 Ultrasonic Distance Sensor
Pepperl+Fuchs

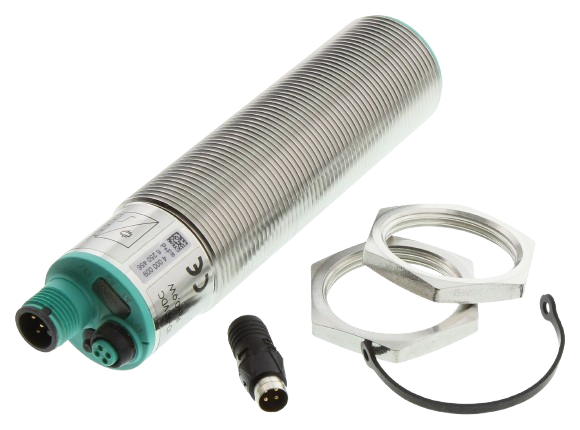

Pepperl+Fuchs UC2000-30GM-IUR2-V15 Ultrasonic Distance Sensor - UC2000-30GM-IUR2-V15
| Product | Pepperl+Fuchs UC2000-30GM-IUR2-V15 Ultrasonic Distance Sensor |
|---|---|
| Brand | Pepperl+Fuchs |
| Product Price | 0 LKR |
| Datasheet | Download |
Description
Product Overview
The Pepperl+Fuchs UC2000-30GM-IUR2-V15 is a robust ultrasonic distance sensor designed for accurate detection and measurement of objects up to 2 meters away. Using ultrasonic technology, it operates reliably regardless of color, reflectivity, or transparency—making it ideal for demanding industrial environments such as material handling, level monitoring, and automation systems.
Equipped with dual switching outputs and a 4–20 mA analog output, this sensor offers maximum flexibility for integration with PLCs, controllers, and process monitoring systems. Its durable M30 metal housing and IP67 protection ensure long-term stability even in harsh conditions.
Key Features
- Reliable ultrasonic detection unaffected by color, transparency, or surface finish
- Long measuring range: 300 mm to 2000 mm
- Two switching outputs (push-pull) + analog 4–20 mA output
- Easy Teach-in parameter setting
- Rugged M30 nickel-plated brass housing
- IP67 protection for dusty and wet environments
- Temperature-compensated measurements
- LED indicators for status and output switching
- Reverse polarity and short-circuit protection
- Standard M12 V15 connector for easy wiring
Technical Specifications
- Brand: Pepperl+Fuchs
- Model: UC2000-30GM-IUR2-V15
- Sensor Type: Ultrasonic Distance Sensor
- Sensing Range: 300 mm to 2000 mm
- Blind Zone: 300 mm
- Outputs:
- 2 × Switching outputs (Push-Pull)
- 1 × Analog output (4–20 mA)
- Beam Angle: Approx. 12°
- Repeat Accuracy: ±0.5% of full scale
- Resolution: 1 mm
- Response Time: ≤ 150 ms
- Operating Voltage: 10–30 V DC
- Current Consumption: < 80 mA
- Protection Features:
- Reverse polarity protection
- Short-circuit protection
- Housing Material: Nickel-plated brass (M30 threaded)
- Protection Class: IP67
- Connection Type: M12 × 1 (4-pin) plug (V15)
- Operating Temperature: –20 °C to +70 °C
- Dimensions: M30 × 92 mm
- Weight: Approx. 160 g
- Certifications: CE, UL listed
Applications
- Level measurement in tanks, silos, sumps, and bins
- Object detection on conveyors and automated lines
- Positioning tasks in industrial automation
- Presence detection for packaging and robotics
- Monitoring reflective or transparent materials
- Distance measurement in process control
Why Buy from FieldInstruments.lk?
As Sri Lanka’s trusted supplier of industrial sensing and automation products, FieldInstruments.lk ensures:
- 100% genuine Pepperl+Fuchs sensors
- Competitive pricing and fast delivery
- Technical assistance for installation and configuration
- Reliable after-sales service and warranty handling
- Complete range of automation and sensing devices
The UC2000-30GM-IUR2-V15 offers durability, precision, and versatility—making it a top choice for modern industrial applications.
