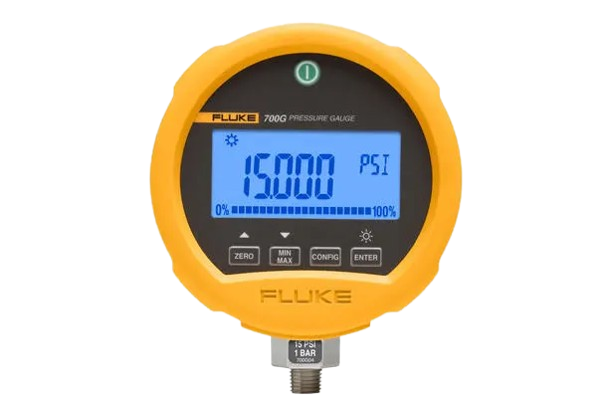

Fluke - Fluke 700GA4 Precision Absolute Pressure Test Gauge
Fluke 700GA4 Precision Absolute Pressure Test Gauge - 700GA4
| Product | Fluke 700GA4 Precision Absolute Pressure Test Gauge |
|---|---|
| Brand | Fluke |
| Product Price | 0 LKR |
| Datasheet | Download |
Description
Product Overview
The Fluke 700GA4 Precision Absolute Pressure Test Gauge is a high-accuracy digital pressure gauge designed for absolute pressure calibration, testing, and measurement applications. It provides precise absolute pressure measurement in the range of 0 to 15 psia (0 to 1 bar absolute), making it ideal for calibration laboratories, vacuum systems, aerospace applications, and process control environments where absolute pressure measurement is critical.
Built with rugged industrial construction and advanced digital accuracy, the 700GA4 delivers reliable performance with accuracy up to ±0.05% of full scale. It features a clear digital display with bar graph indication, internal data logging capability, and compatibility with Fluke pressure test pump kits for complete calibration solutions.
Key Features
• Absolute pressure measurement up to 15 psia (1 bar absolute)
• High accuracy ±0.05% of full scale
• High-resolution digital display with bar graph
• Rugged industrial design for field and laboratory use
• Internal data logging capability (with 700G/TRACK software)
• Compatible with pneumatic pressure test pump kits
• Compact and portable design
• Long battery life up to 2000 hours
• Calibration certificate included
• Trusted Fluke reliability and performance
Technical Specifications
Manufacturer: Fluke
Model: 700GA4
Type: Precision Absolute Pressure Test Gauge
Pressure Measurement
• Measuring range: 0 to 15 psia (0 to 1 bar absolute)
• Accuracy: ±0.05% of range
• Resolution:
• 0.001 psi
• 0.0001 bar
• Burst pressure: 60 psi (4 bar)
General Specifications
• Display: Digital display with bar graph
• Pressure connection: ¼ inch NPT male
• Battery type: 3 × AA alkaline batteries
• Battery life:
• 1500 hours continuous use
• 2000 hours typical use
• Dimensions: 127 × 114 × 37 mm
• Weight: 0.56 kg
• Housing: Rugged industrial housing
Applications
• Absolute pressure calibration
• Vacuum system testing
• Aerospace pressure measurement
• Calibration laboratories
• Industrial process control
• Instrument calibration
• Research and development
• Quality assurance testing
