Fluke - Fluke 700RG06 Reference Pressure Test Gauge
Fluke 700RG06 Reference Pressure Test Gauge - 700RG06
| Product | Fluke 700RG06 Reference Pressure Test Gauge |
|---|---|
| Brand | Fluke |
| Product Price | 0 LKR |
| Datasheet | Download |
Description
Product Overview

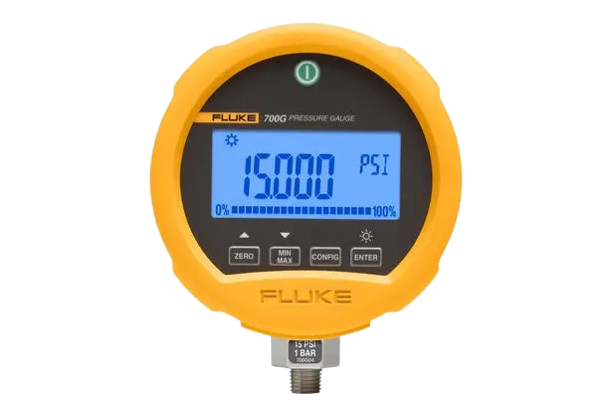

The Fluke 700RG06 Reference Pressure Test Gauge is a high-precision digital pressure gauge designed for calibration, testing, and measurement applications requiring reference-class accuracy. It provides precise pressure measurement in the range of –12 to 100 psi (–0.83 to 6.9 bar), making it ideal for calibration laboratories, industrial pressure calibration, and precision instrument verification.
Built with rugged industrial construction and superior reference accuracy, the 700RG06 delivers reliable performance with accuracy up to ±0.04% of reading. Reference class gauges in the Fluke 700G series are designed to provide extremely high measurement precision for demanding calibration applications.
Key Features
• Reference-class pressure measurement up to 100 psi (6.9 bar)
• High reference accuracy ±0.04% of reading
• High-resolution digital display with bar graph
• Rugged industrial design for field and laboratory use
• Internal data logging capability (with 700G/TRACK software)
• Compatible with pneumatic and hydraulic test pump kits
• Compact and portable design
• Long battery life up to 2000 hours
• Calibration certificate included
• Trusted Fluke reliability and performance
Technical Specifications
Manufacturer: Fluke
Model: 700RG06
Type: Reference Pressure Test Gauge
Pressure Measurement
• Measuring range: –12 to 100 psi (–0.83 to 6.9 bar)
• Accuracy:
• Positive pressure: ±0.04% of reading ±0.01% of range
• Vacuum: ±0.1% of range
• Resolution:
• 0.01 psi
• 0.0001 bar
• Burst pressure: 400 psi (27 bar)
General Specifications
• Display: Digital display with bar graph
• Pressure connection: ¼ inch NPT male
• Battery type: 3 × AA alkaline batteries
• Battery life:
• 1500 hours continuous use
• 2000 hours typical use
• Dimensions: 127 × 114 × 37 mm
• Weight: 0.56 kg
• Housing: Rugged industrial housing
Applications
• Pressure calibration laboratories
• Reference pressure measurement
• Calibration of pressure transmitters and gauges
• Industrial process calibration
• Quality assurance testing
• Instrument calibration
• Maintenance and service applications
• Research and development
