Description
Product Overview

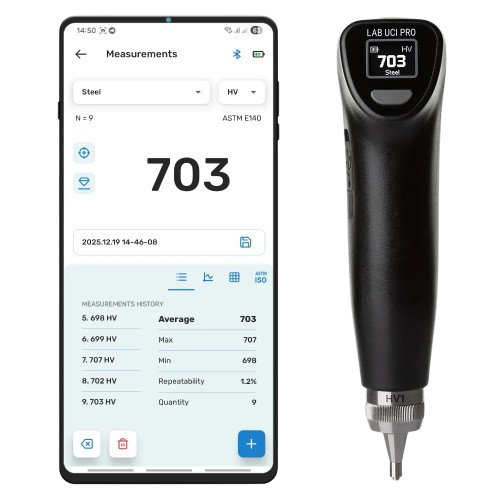

The NOVOTEST Lab UCI and Lab UCI PRO are advanced portable ultrasonic hardness testers based on the Ultrasonic Contact Impedance (UCI) method, designed for fast, accurate, and non-destructive hardness testing of metallic materials.
Developed by NOVOTEST, these instruments are ideal for laboratories, production floors, maintenance sites, and field inspections, especially where traditional hardness testing methods are impractical.
By connecting wirelessly to the NOVOTEST Lab mobile application, the tester transforms into a powerful digital inspection system capable of data logging, analysis, reporting, and cloud synchronization.
Key Features
• Ultrasonic Contact Impedance (UCI) technology for precise surface hardness testing
• Multiple probe loads: 1 kg (10 N), 5 kg (50 N), 10 kg (98 N)
• Measures hardness in HV, HB, HRC, HRB, HRA and tensile strength (MPa)
• Automatic hardness scale conversion
• Measurement in any direction (360°) without accuracy loss
• Wireless connection to Android smartphones & tablets via NOVOTEST Lab App
• Unlimited data storage (device memory limited by smartphone/cloud storage)
• Create graphs, histograms, statistics, and detailed inspection protocols
• Save results with text, photo, audio, and video attachments
• One-click report sharing via email or messaging apps
• Built-in rechargeable battery with USB charging
• Compact, lightweight, and ultraportable design
Technical Specifications – Lab UCI
• Probe Loads: 1 kg / 5 kg / 10 kg
• Measurement Range:
– Vickers (HV): 240 – 940 (expandable up to 2000 HV)
– Rockwell (HRC): 20 – 70
– Brinell (HB): 90 – 650
– Tensile Strength: 370 – 1740 MPa
• Accuracy: ±15 HV, ±2 HRC, ±10 HB
• Scales: HV, HB, HRC, HRB, HRA, MPa
• Materials (Pre-calibrated): Steel, Brass, Aluminum
• Measuring Direction: Any direction (360°)
• Data Storage: NOVOTEST Lab App / Cloud storage
• Languages: English, Ukrainian, Russian (others on request)
• Battery Life: Approx. 10 hours
• Operating Temperature: –30 °C to +60 °C
• Dimensions / Weight: 160 × 26 mm (36 mm with nozzle) / 0.165 kg
Applications
• Weld inspection and heat-affected zone testing
• Quality control in manufacturing and fabrication
• Inspection of thin parts, coatings, and surface-hardened layers
• Maintenance and failure analysis
• Incoming material verification
• Field and laboratory hardness testing
Why Buy from FieldInstruments.lk?
• Genuine NOVOTEST hardness testing instruments
• Expert support for probe selection and calibration
• Professional guidance for UCI hardness applications
• Trusted supplier for NDT and material testing solutions in Sri Lanka
📞 Contact FieldInstruments.lk for pricing, demonstrations, and expert technical support.
