Product Overview

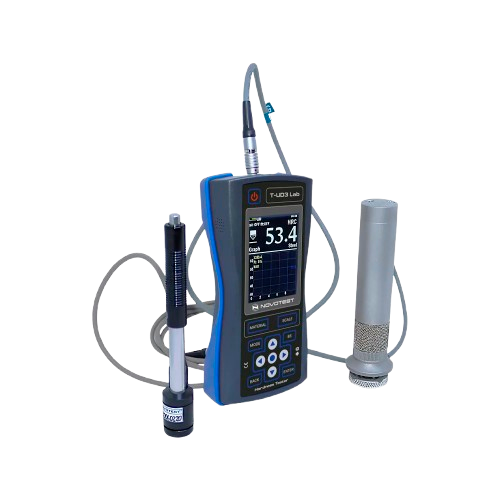

The NOVOTEST T-UD3 is a professional portable combined hardness tester that integrates Ultrasonic Contact Impedance (UCI) and Leeb rebound testing methods into a single, highly versatile instrument. Designed by NOVOTEST, the T-UD3 enables accurate hardness testing across a wide range of materials, component sizes, and surface conditions.

This dual-technology capability makes the T-UD3 ideal for field inspections, quality control, maintenance, production testing, and material verification, especially where traditional bench testers cannot be used.

Key Features

• Dual hardness testing methods: UCI and Leeb in one instrument
• Supports multiple UCI probe loads (1 kg / 5 kg / 10 kg)
• Compatible with various Leeb impact devices (D, DC, DL, C, D+15, E, G)
• Suitable for thin parts, surface-hardened layers, coatings, and large components
• Automatic hardness scale conversion
• Measures hardness in HV, HB, HRC, HRB, HL and tensile strength (MPa)
• 360° measurement direction – works in any orientation
• Color LCD display for clear visualization of results
• Internal memory for data storage and recall
• USB interface for PC connection, data transfer, and reporting
• Rugged, compact, and lightweight design for on-site use
• Long battery life suitable for extended field inspections

Technical Specifications

• Testing Methods:
– Ultrasonic Contact Impedance (UCI)
– Leeb Dynamic Rebound

• UCI Probe Loads:
– 1 kg (10 N)
– 5 kg (50 N)
– 10 kg (98 N)

• Leeb Impact Devices Supported:
– D, DC, DL, C, D+15, E, G

• Hardness Scales:
– HV, HB, HRC, HRB, HL
– Tensile strength (MPa)

• Typical Measurement Ranges:
– HV: approx. 230 – 940 (expandable by calibration)
– HB: approx. 90 – 650
– HRC: approx. 20 – 70
– Tensile Strength: approx. 370 – 1740 MPa

• Measuring Direction: Any direction (360°)
• Display: Color LCD
• Data Storage: Internal memory with export via USB
• Power Supply: Battery powered
• Operating Temperature: Suitable for industrial field environments
• Construction: Portable, impact-resistant housing

Applications

• Hardness testing of castings, forgings, and machined parts
• Inspection of heat-treated and surface-hardened components
• Testing of thin materials and coatings
• Maintenance and failure analysis
• Incoming material inspection and verification
• Automotive, aerospace, power plants, oil & gas, and heavy industry

Why Buy from FieldInstruments.lk?

• Genuine NOVOTEST hardness testing instruments
• Expert guidance on method and probe selection
• Reliable technical support and after-sales service
• Trusted supplier for material testing and NDT solutions in Sri Lanka
